240x64 dots matrix graphic lcd module display

FOB Reference Price:Get Latest Price
  • >=3000 Pieces
    US $16.50
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Caijing
Model Number:
LCM24064-1SLDAA-5
Type:
Graphic
Product name:
240x64 dots matrix graphic lcd module display
Dot matrix:
240x64 dots
Module Dimension:
180x65x13.8mm
Viewing display area:
132x39mm
Active display area:
127x33mm
Dot size:
0.49x0.49mm
Dot pitch:
0.04x0.04mm
Drive method:
1/64 duty,1/9Bias
Viewing direction:
6 O'clcock
LCD:
Stn yellow
Supply Ability
Supply Ability:
30000 Piece/Pieces per Day For Standard size stn yellow green 240x64 dots matrix lcd modul
Packaging & Delivery
Packaging Details
1pc/bubble bag,2pcs in a small box.
Port
Shenzhen Port
Lead Time :
10-15 days

240x64 dots matrix graphic lcd module display

Product Description

Dots matrix: 240 x 64 dots

Overall size: 180 x 65 x 13.8mm

Dots: 0.49 x 0.49mm

Dots pitch: 0.04 x 0.04mm

Drive method: 1/64 duty, 1/9 bias

Viewing: 6 O'clock

LED backlight color: white

Backlight input: +5.0V DC

LED backlight current: 50mA

Input voltage: +5.0V DC

LCD driver: T6963C

Weight: 180g

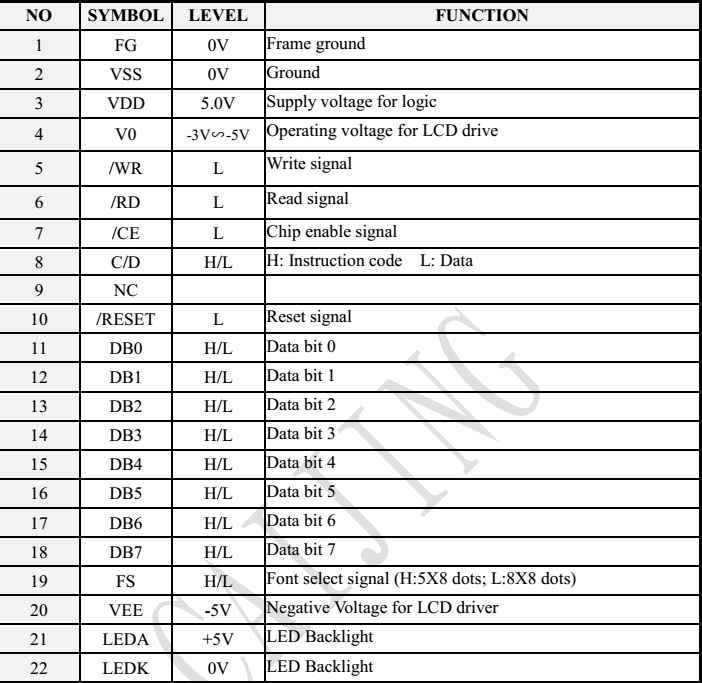

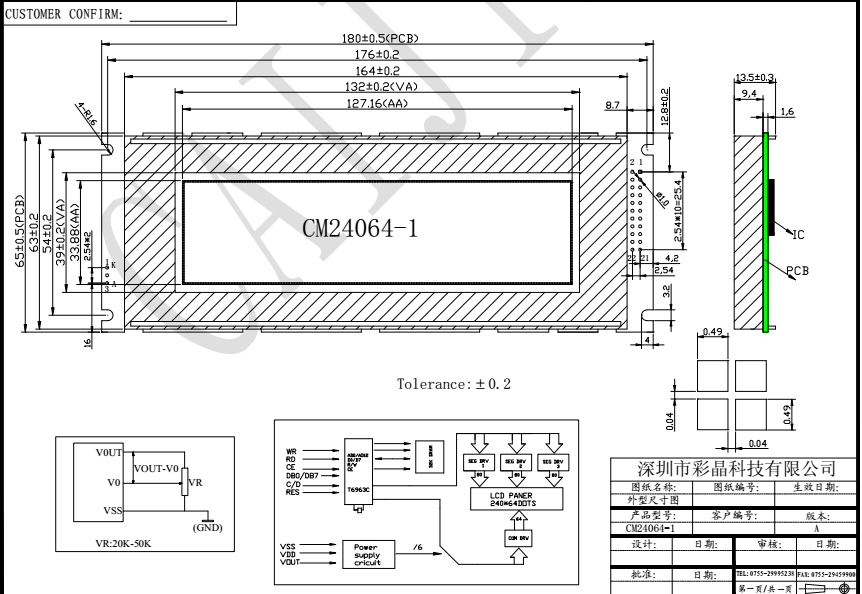

Drawing for 240x64 dots matrix graphic lcd module display

240x64 dots matrix lcd.png

240x64 dots matrix graphic lcd module display

240x64 lcd module.png

240x64 dots matrix graphic lcd module display

Custom LCD

 How to custom LCD

Step 1: Offer us your requirements according the below table or send us your drawing directly
Step 2: Our engineer check it and confirm
Step 3: If confirmed ,pay us tool fees
Step 4:Send you the final drawing and you sign your name on it .
Step 5:Received your payment and start to produce sample
Step 6:ship samples and offer technology support

128x32 graphic lcm display

128x32 graphic lcm display



Related Product

Shenzhen Brilliant crystal Technologic Co.,ltd  a professional Character and Graphic LCD manufacturer.graphic LCD displays (liquid crystal display) are available in dot matrix format of graphic resolution including 122x32, 128x64, 128x128, 256x64, 160x128, 160x160, 160x32, 160x80, 192x64,240x128 dots 240x64, 320x240 and etc. The sizes are including 3" LCD, 3.2" LCD, 4" LCD Display, and etc. Graphic LCD modules are including different options of polarizer in reflective, transmissive or transflective types. Our LED backlights are available in various colors including yellow/green, white, blue, red, amber and RGB.

We have an extensive range of LCD graphic displays with various backlight and LCD type combinatio. graphic LCD can be used on instrument and industry machinery equipment as well as electrical home appliances, consumer electronics including white goods, POS system, home applications, industrial instrument, automation, audio/visual display systems, and medical device.

Part of LCD display module, Monochrome LCD display, Monochrome graphics list

dots      matrixModel NO.Outline size
L x W x H (mm)
V.A
L x W(mm)
Dot
L x W(mm)
controllersupply voltageInterface
128x64CM12864-3093×70×1373×390.48×0.48KS01085V/3Vparallel
128x64CM12864-3154×50×7.540.5×28.80.29×0.36IST30043Vserial/parallel
128x128CM128128-1106×92×1473×730.49×0.49T6963C5Vserial/parallel
128x128CM128128-4106×92×1473×730.49×0.49T6963C5Vserial/parallel
128x128CM128128-672.1×65×8.348×480.33×0.33ST75413Vparallel
128x128CM128128-850.0×45.8×7.731×300.19×0.19ST75413Vserial/parallel
160x64CM16064-187×60×12.561.5×260.33×0.33T6963C5V/3Vparallel
160x128CM160128-2129×102×12101×820.54×0.54T6963C5V/3Vserial/parallel
160x160CM160160-377×73.5×7.858×580.32×0.32UC16983Vparallel
192x64CM19264-1130×65×12.2104×390.458×0.458KS01085V/3Vparallel
192x64CM19264-4120×62×12.2104×390.458×0.458KS01085V/3Vparallel
192x64CM19264-6100×60×1384×310.36×0.36KS01085V/3Vparallel
192x64CM19264-8100×60×1384×310.36×0.36KS01085V/3Vparallel
240x64CM24064-1180×65×13.8132×390.49×0.49T6963C5V/3Vserial/parallel
240x64CM24064-2180×65×13.8132×390.49×0.49RA88355V/3Vserial/parallel
240x64CM24064-8180×65×13.8132×390.49×0.49T6963C5V/3Vserial/parallel
240x64CM24064-10146×62.5×13123×42.50.45×0.57T6963C5V/3Vserial/parallel
240x64CM24064-11180×62×11.8132×390.49×0.49T6963C5V/3Vserial/parallel
240x128CM240128-1144×104×12114×640.4×0.4T6963C5V/3Vserial/parallel
240x128CM240128-2144×104×12114×640.4×0.4T6963C5V/3Vserial/parallel
240x128CM240128-3144×104×12114×640.4×0.4HD618305V/3Vparallel
240x128CM240128-4144×104×12114×640.4×0.4T6963C5V/3Vserial/parallel
240x128CM240128-5154×84×12114×640.4×0.4T6963C5Vserial/parallel
240x128CM240128-6144×104×12114×640.4×0.4T6963C5V/3Vserial/parallel
240x128CM240128-9144×104×12114×640.4×0.4T6963C5V/3Vserial/parallel
240x128CM240128-10144×104×12114×640.4×0.4T6963C5V/3Vserial/parallel
240x128CM240128-11144×104×10.8114×640.4×0.4UC1698U3Vparallel
240x128CM240128-1288.5×67×8.575.6×41.50.285×0.285UC1698U3Vparallel
240x128CM7401159×101×12114×640.4×0.4HD618305V/3Vparallel
240x128CM7420159×101×12114×640.4×0.4T6963C5V/3Vserial/parallel
FAQ

1.Are custom displays more expensive than standard displays?
No,It only means you need pay some tool fees .
2.Can I modify an existing standard display?
Yes, we consider this semi-custom, and anything is possible.It will help you save tool fees .
3.What's you MOQ?
If there is stock,we have no MOQ
If no stock ,Gernerally speaking ,
The MOQ is 1000 pcs for COB styles
3000~5000pcs for segment and COG style
300~500pcs for TFT lcd module styles .
4.What is your Delivery time
1~2 days for sample making.
7-10 days for mass production has raw material stock
30~45 days if no stock raw material
5.How long is your display span
Most of our displays run 7-10 years
