Industrial 10.4" 800x600 hmi tft lcd display for vending machine

FOB Reference Price:Get Latest Price
  • >=100 Pieces
    US $94.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Caijing
Model Number:
CJS10401TRWS
Type:
TFT
Item name:
10.4" 800x600 hmi tft lcd display
Color:
TFT color

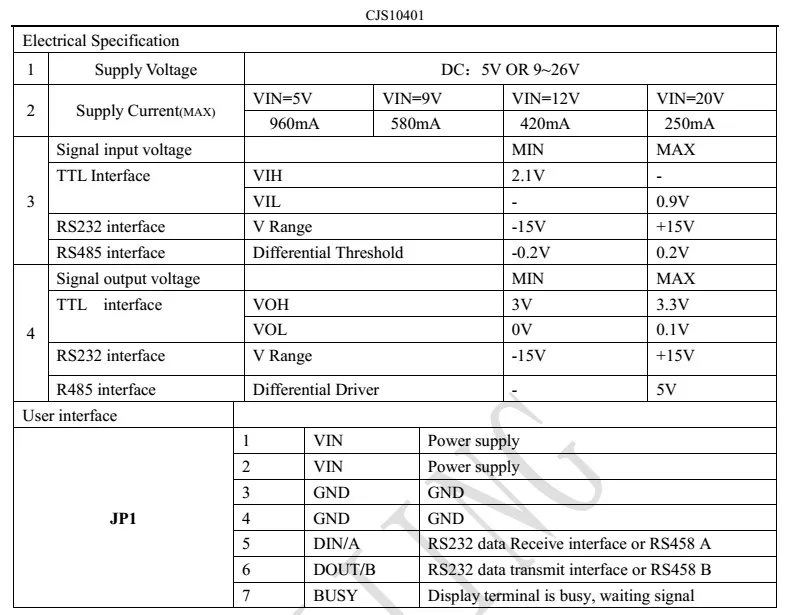

Voltage:
5V or 9V~26V
Interface:
RS232.RS485.TTL
Viewing area:
247X177mm
backlight:
LED backlight
Brightness:
250cd/m2
Weight:
0.85kg
Picture download:
USB download mode
Grade:
Industrial grade
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day For 4Gbit flash 10.4" 800x600 hmi tft lcd display
Packaging & Delivery
Packaging Details
1pc/bubble bag,2pcs in a small box.
Port
Shenzhen Port
Lead Time :
10-15 days

Before you place order ,please let us know

1.Do you need resistive touch panel or resistive touch panel or capacitive touch panel ?

2.Do you need TTL or RS232 or RS485 interface ?

3.Do you need 5V or 9~12V or 24V ?

4.Do you need business type (cheap) or industry type or super wide temperature type ?



Selling Point

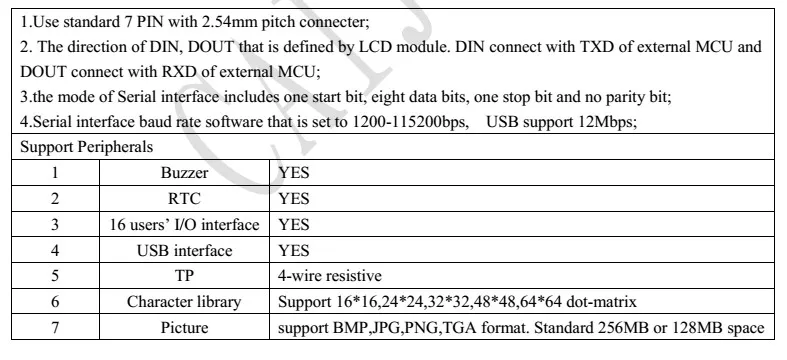

RS232/RS485/ TTL(3.3V)
Baud rate
1200-115200bps Wide voltage input(5V/9V- 24V) RTC
real-time clock Resistiv e touch screen Capaciti ve touch screen
picture download
Serial port Flash(16MB)
NandFlash (128MB/256MB) Multi-page
mem ory True color display (65K) backlight continuous adjustment

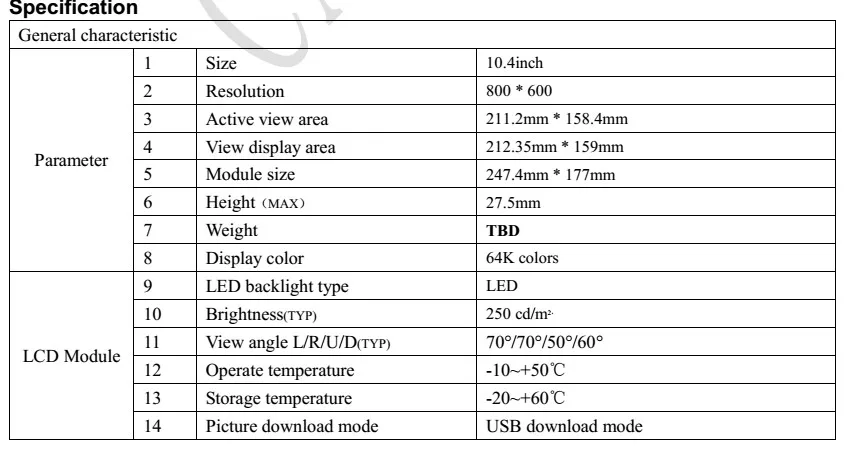

Product Description
  • Model No.: CJS10401
  • Size:10.4 inch
  • Resolution: 800x600 dots matrix
  • View display area: 212.35x159mm
  • Active view area: 211.2x158.4mm
  • Module sizes: 247.4x177mm
  • Height: 27.5mm
  • Display color: 64K colors
  • LED backlight type: LED
  • Brightness: 250cd/m2
  • View angle L/R/U/D: 70°/70°/50°/70°
  • Operate temperature range: -20~+70℃
  • Storage temperature range: -30~+80℃

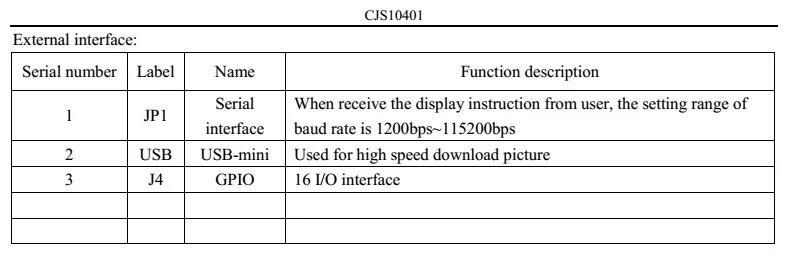

  • Interfaces: RS232.RS485.TTL UART
  • Picture download mode: USB download mode
  • Function: set current palette, set the character display spacing, take a color from specific location, cursor display
  • Text display, choose the character library display, character zoom in display, set/ cancel the limitation for textbox,
  • Display point, line display, line chart display, ellipse and ellipse area operate, circular curve display
  • Rectangle and rectangular region display, dynamic curve display, clear full screen, picture/icon display and so on





Drawing for 4Gbit flash 10.4" 800x600 hmi tft lcd display

10.4 lcd display module.JPG

10.4 TFT lcd module display.JPG

10.4 intelligent LCD Module.JPG

10.4 LCD module.JPG

10.4 inch.JPG

Product Certificates

4Gbit flash 10.4" 800x600 hmi smart terminal tft lcd display module with touch panel

8 characters 2 lines lcd module certificates.png

Our Services

Our advantage and service

15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free sample for some styles

Our equipment.png

Product usage

Intelligent TFT LCD module is widely used in Healthcare Biomedical Instrumentation,and clinical diagnostics,Wind Sensors for Measurement,Control, Alarm, Internet Access,metering pumps and dosing systems,water treatment ,charging pile and car beauty equipment and Industrial control equipment, instruments and meters, bank terminal and so on .
