Industrial grade UART 4.3 inch intelligent tft lcd module display

FOB Reference Price:Get Latest Price
  • >=100 Pieces
    US $35.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Caijing
Model Number:
CJS04301
Type:
TFT
Product Name:
Industrial grade UART 4.3 inch intelligent tft lcd module display
Size:
4.3 inch
Brightness:
500cd/m2
Module size:
122x75mm
Display color:
64K colors
Viewing angle L/R/U/D:
70/70/50/70°
Operating temperature:
-20-+70℃
Storage temperature:
-30-+80℃
Interface:
RS232.RS485.TTL
Viewing display area:
95.04x53.86mm
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day For Industrial grade UART 4.3 inch intelligent tft lcd module di
Packaging & Delivery
Packaging Details
1pc/bubble bag,2pcs in a small box.
Port
Shenzhen Port
Lead Time :
10-15 days

Industrial grade UART 4.3 inch intelligent tft lcd module display

Product Description

 Model No.: CJS04301NRW

Size: 4.3-inch
Resolution: 480x272 dots matrix
Viewing display area: 95.04x53.86mm
Active viewing area: 98.5x57.3mm
Module size: 122x75mm
Height: 21.5mm
Display color: 64K colors
LED backlight type: LED
Brightness: 500cd/m2
Viewing angle L/R/U/D: 70/70/50/70°
Operating temperature: -20-+70℃
Storage temperature: -30-+80℃
Interface: RS232, RS485, TTL, UART
Picture download mode: USB download mode
Controller: STM32F103 controller
Function: set current palette, set the character display spacing
Take a color from specific location, cursor display
Text display, choose the character library display, character zoom in display
Set/cancel the limitation for textbox
Display point, line display, line chart display, ellipse and ellipse area operating, circular curve display

Rectangle and rectangular region display, dynamic curve display, clear full screen, picture/icon display and more



Selling Point

Supporting RS232, RS485, USART (3.3V TTL) interfaces, baud rate from 1,200 to 115,200bps wide input range VDD (9-26V)
RTC real-time clock
Embedded 4-wire touch panel controller
USB picture download
Multiple pages DDRAM
Color depth TFT: 65K colors
2/4GB flash
PWM for backlight
Management of datasheet file
Efficient development tool for PC, most development work can be done on the PC
Hardware acceleration, transferred image quickly



Industrial grade UART 4.3 inch intelligent tft lcd module display

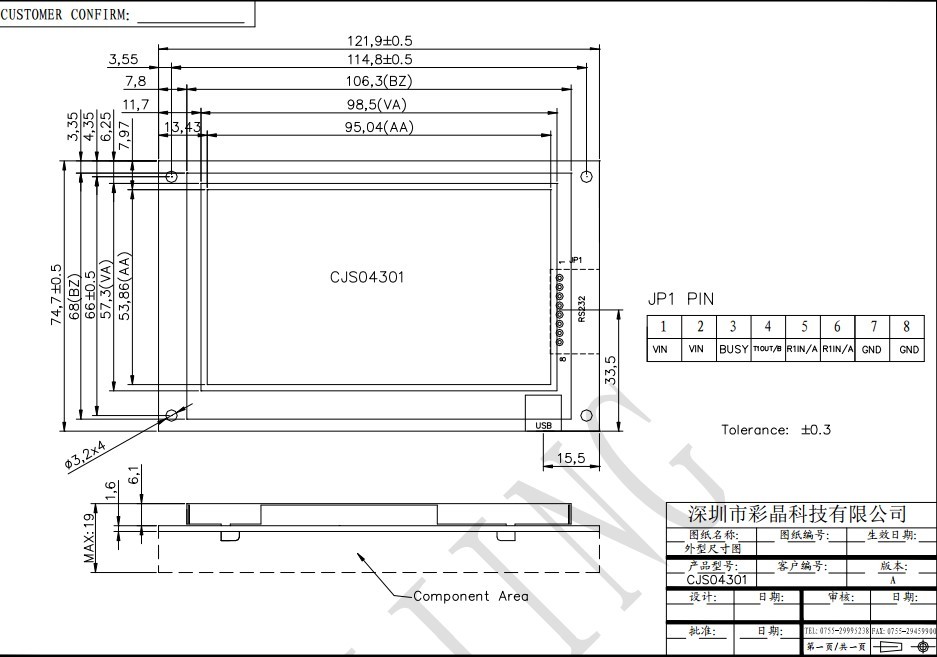

4.3 inch lcd.JPG





Product Certificates

Industrial grade UART 4.3 inch intelligent tft lcd module display

8 characters 2 lines lcd module certificates.png

Our Services

Our advantage and service

15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free sample for some styles

Our equipment.png

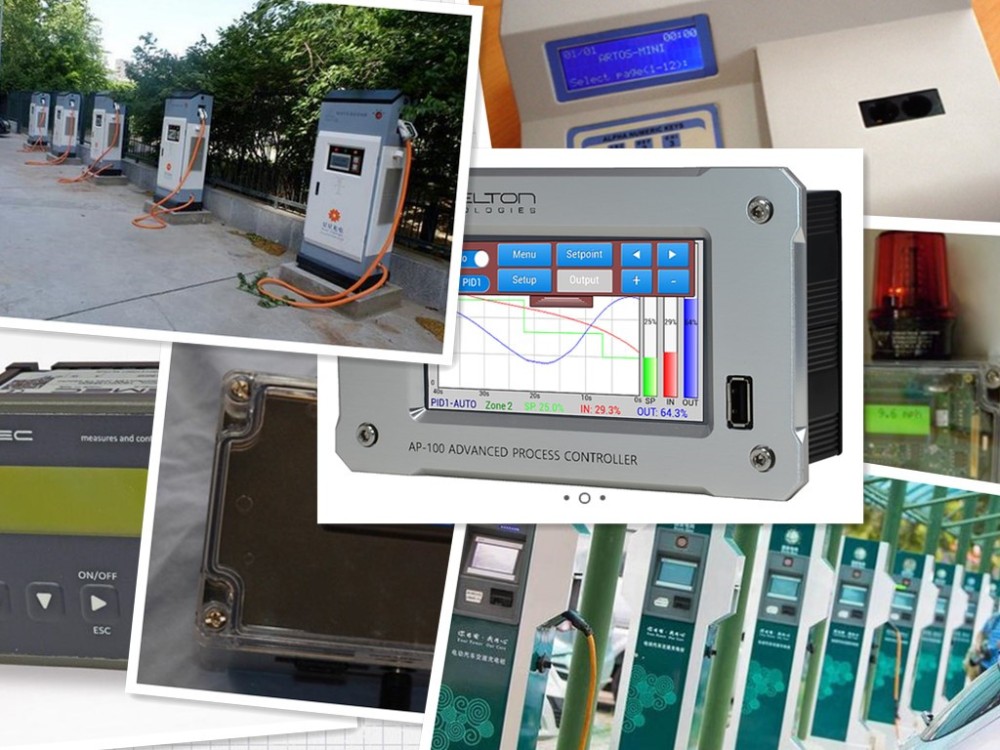

Product usage

 Our lcd module is widely used in Healthcare Biomedical Instrumentation,and clinical diagnostics,Wind Sensors for Measurement,Control, Alarm, Internet Access,metering pumps and dosing systems,water treatment ,charging pile and car beauty equipment and Industrial control equipment, instruments and meters, bank terminal and so on .




Contact Us

Shenzhen Brilliant Crystal Technologic Co.,ltd

Bella Zou

Skype:cjsz2002

QQ:2829642402

cjsz2002#hotmail.com

Celand whatsapp:+86-15889302786

Tel:+86-0755-29485608

Website:www.cjlcd.com  & www.cj86.com

              https://szcmlcd.1688.com/

Related Product

Industrial grade UART 4.3 inch intelligent tft lcd module display

Part of the related TFT lcd module display

4.3 inch TFT LCD MODULE

5 inch TFT LCD module display

5.6 inch tft lcd module

7 inch tft lcd module

8 inch tft lcd module

10.1 inch tft lcd module

10.4 inch tft lcd module

Display contentModel No.Outline size
L x W x H (mm)
V.A
L x W(mm)
Dots Size
L x W(mm)
VOltage     Interface
480x272RGBCJS04301120.4x68.6x8.098.5x57.30.066x0.1985V/9V-26VRS232/RS485/TTL
800x480RGBCJS05001143.5x80.9x17.5109x65.80.045x0.1355V/9V-26VRS232/RS485/TTL
640x480RGBCJS05602143.5x105x17115.9x87.670.0588x0.17645V/9V-26VRS232/RS485/TTL
800x480RGBCJS07001190x112x18154.9x93.90.0635x0.19055V/9V-26VRS232/RS485/TTL
800x480RGBCJS07002190x112x18155.9x88.30.0635x0.19055V/9V-26VRS232/RS485/TTL
1024x600RGBCJS07006190x106.6x37.5156.2x92.60.0635x0.19055V/9V-26RS232/RS485/TTL
800x480RGBCJS07008203x112x21155.9x88.30.0635x0.19055V/9V-26VRS232/RS485/TTL
800x600RGBCJS08001199.4x148.9x15163.5x123.50.0675x0.20255V/9V-26VRS232/RS485/TTL
1024x768RGBCJS08003199.4x148.9x37.5163.5x123.50.0675x0.20255V/9V-26RS232/RS485/TTL
1280x800RGBCJS10101248x150.7x37.5219.46x138.10.0635x0.19055V/9V-26RS232/RS485/TTL
800x600RGBCJS10401247.5x176.8x16211.2x158.40.264x0.2645V/9V-26VRS232/RS485/TTL
800x600RGBCJS10402247.5x176.8x16211.2x158.40.264x0.2645V/9V-26VRS232/RS485/TTL
