128x128 dots matrix graphic lcd module display

FOB Reference Price:Get Latest Price
  • >=3000 Pieces
    US $3.60
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Caijing
Model Number:
LCM128128-1SLD
Type:
Graphic
Item name:
128x128 dots matrix graphic lcd module display
Dots matrix:
128x128 dots
Module dimension:
92x106x14.2mm
Viewing display area:
73x73mm
Active display area:
67.8x67.8mm
Dot size:
0.49x0.49mm
Dot pitch:
0.04x0.04mm
Drive method:
1/128 duty,1/2BIAS
Viewing direction:
6 O'clcok
LCD driver:
T6963C
Supply Ability
Supply Ability:
30000 Piece/Pieces per Day For 128x128 dots matrix graphic lcd module display
Packaging & Delivery
Packaging Details
1pc/bubble bag,2pcs in a small box.
Port
Shenzhen Port
Lead Time :
10-15 days

128x128 dots matrix graphic lcd module display

Product Description

Model number: CM128128-1SLYA

Dot matrix: 128 x 128 dots
Size: 92*106*14.2mm
VA: 73*73mm
Drive methods: 1/128 duty, 1/12 bias
Viewing angle: 6:00
Display: STN blue or Y-G model
Voltage: 5V
Controller: T6963/RA6963
TOP: -20 - +70 degrees Celsius

TST: -30 - +80 degrees Celsius



128x128 dots matrix graphic lcd module display

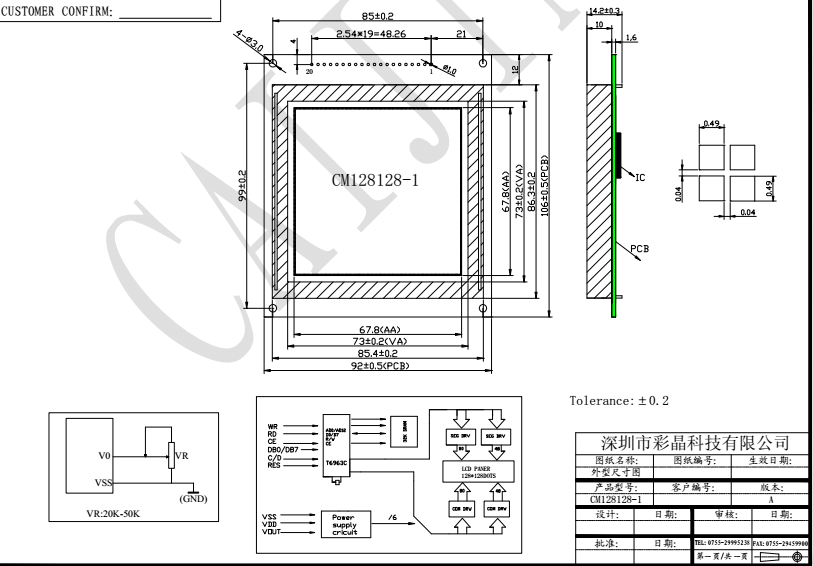

128128 lcd module.png



128x128 dots matrix graphic lcd module display

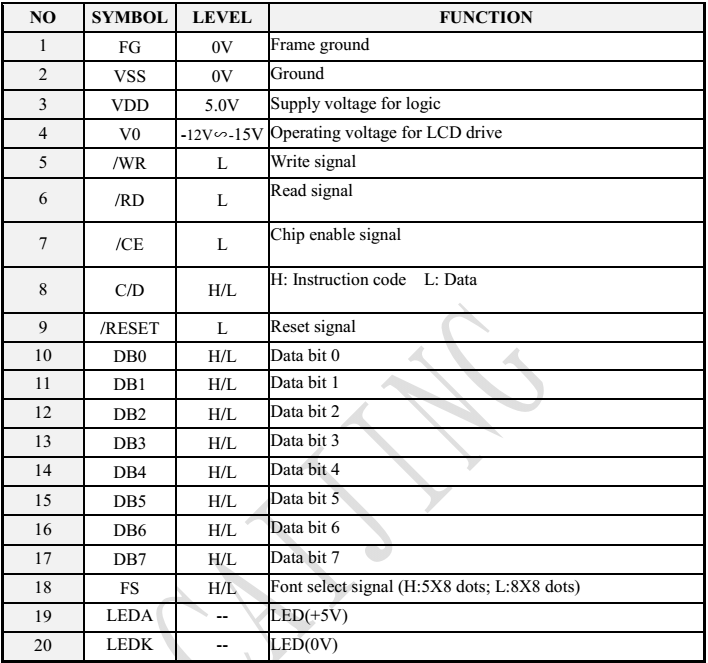

128128 lcd display.png

128x128 dots matrix graphic lcd module display

Our Services

Our advantage and service

15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free sample for some styles

Custom LCD



How to custom LCD

Step 1: Offer us your requirements according the below table or send us your drawing directly
Step 2: Our engineer check it and confirm
Step 3: If confirmed ,pay us tool fees
Step 4:Send you the final drawing and you sign your name on it .
Step 5:Received your payment and start to produce sample
Step 6:ship samples and offer technology support

3.3v 128x32 graphic lcd display module

3.3v 128x32 graphic lcd display module

Related Product

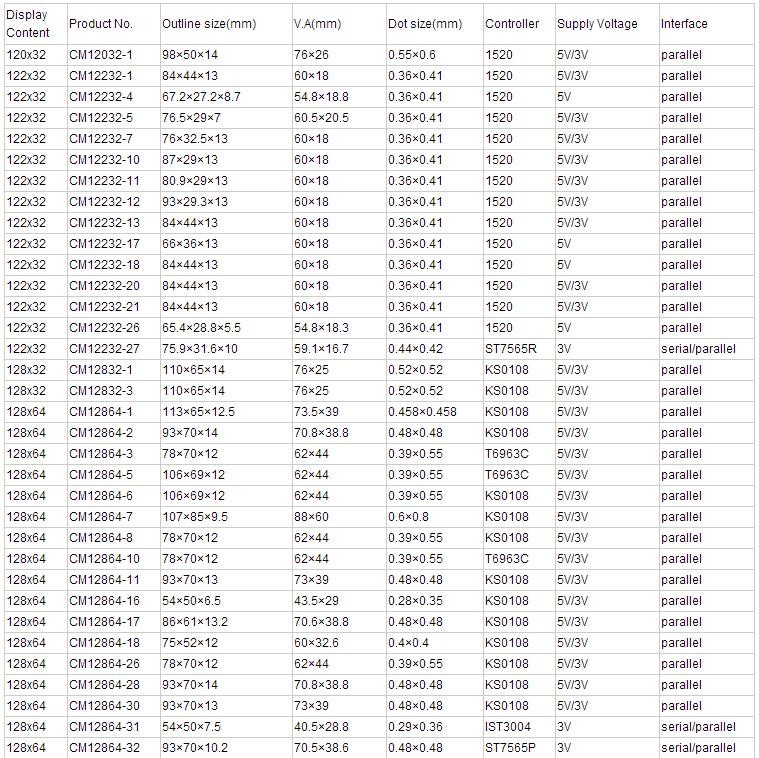

  About graphical lcd module ,we have 120x32 dots matrix lcd module ,122x32 graphical lcd module,128x32 stn lcd display module ,128x64 monochrome lcd module,128x128 lcd display module,160x128 dots matrix lcd display,160x160 stn lcd,

192x64 graphical lcd display module,240x64 lcd,240x128,240x160 and 320x240 lcd module display.

12232 lcd.jpg



FAQ

 1.Are custom displays more expensive than standard displays?
No,It only means you need pay some tool fees .
2.Can I modify an existing standard display?
Yes, we consider this semi-custom, and anything is possible.It will help you save tool fees .
3.What's you MOQ?
If there is stock,we have no MOQ
If no stock ,Gernerally speaking ,
The MOQ is 1000 pcs for COB styles
3000~5000pcs for segment and COG style
300~500pcs for TFT lcd module styles .
4.What is your Delivery time
1~2 days for sample making.
7-10 days for mass production has raw material stock
30~45 days if no stock raw material
5.How long is your display span
Most of our displays run 7-10 years
