HMI1024x768pixel 8 inch tft color intelligent lcd module

FOB Reference Price:Get Latest Price
  • >=500 Pieces
    US $80.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Caijing
Model Number:
CJS08003
Type:
TFT, TFT color
Product name:
HMI1024x768pixel 8 inch tft color intelligent lcd module
Voltage:
5V or 9V~26V
Interface:
RS232.RS485.TTL,USB port
Viewing area:
163X123mm
backlight:
LED backlight
Brightness:
250cd/m2
Active display area:
162X122mm
Picture download:
USB download mode
Touch panel:
yes
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day For HMI1024x768pixel 8 inch tft color intelligent lcd module
Packaging & Delivery
Packaging Details
1pc/bubble bag,2pcs in a small box.
Port
Shenzhen Port
Lead Time :
10-15 days

 HMI1024x768pixel 8 inch tft color intelligent lcd module

Selling Point

RS232/R S485/TT L(3.3V) Baud rate 1200-115

200bps Wide voltage input(5V/9V-2 4V) RTC
real-time clock Resistive touch screen Capacitive touch screen

picture download NandFlash (256MB/ 512MB)

Multi-pages memory

True color display(65K) PWM
backlight continuous adjustment

Audio Player(mp 3/wav)

Video playback (.movie)

Camera (AV interface)
SD card interface

Product Description

Size: 8 inches
Resolution: 1028x768dots matrix
Active view area: 162x121.5mm
View display area: 163.5x123.5mm

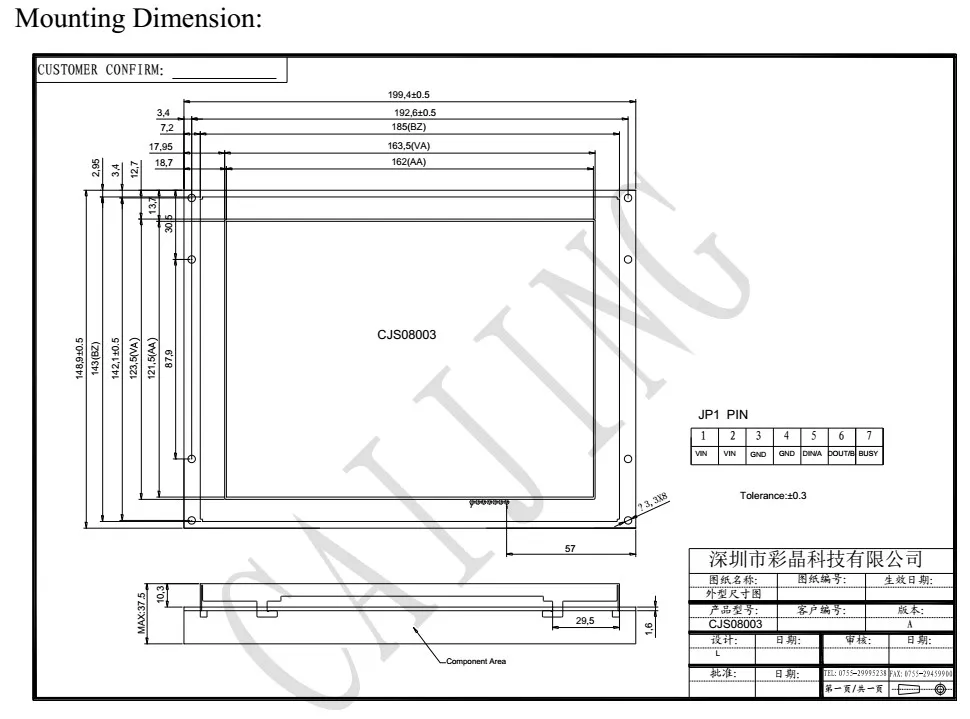

Module size: 199.4mmx148.9mm
Height: 26.5mm
Display color: 64K colors
LED backlight type: LED
Brightness: 250cd/m2
View angles L/R/U/D: 70/70/50/70°
Operate temperatures: -20~70°C
Storage temperatures: -30~80°C
Picture download mode: USB download mode

Functions:
Sets current palette
Sets the character display spacing
Takes a color from specific location
Cursor display
Text display
Chooses the character library display
Character zoom in display
Set/cancel the limitation for textbox
Display point
Line display
Line chart display
Ellipse and ellipse area operate
Circular curve display
Rectangle and rectangular region display
Dynamic curve display
Clear full screen
Picture/icon display and more












Product Certificates

     HMI1024x768pixel 8 inch tft color intelligent lcd module

8 characters 2 lines lcd module certificates.png

Our Services

Our advantage and service

15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free sample for some styles

Our equipment.png

Product usage

Shenzhen Brilliant Crystal technologic Co.,ltd  lcd module are widely used in Healthcare Biomedical Instrumentation,and clinical diagnostics,Wind Sensors for Measurement,Control, Alarm, Internet Access,metering pumps and dosing systems,water treatment ,charging pile and car beauty equipment and Industrial control equipment, instruments and meters, bank terminal and so on .




Contact Us

Shenzhen Brilliant Crystal Technologic Co.,ltd

Bella Zou

Skype:cjsz2002

QQ:2829642402

cjsz2002#hotmail.com

Celand whatsapp:+86-15889302786

Tel:+86-0755-29485608

Website:www.cjlcd.com  & www.cj86.com

              https://szcmlcd.1688.com/

Related Product

 HMI1024x768pixel 8 inch tft color intelligent lcd module

Display contentModel No.Outline size
L x W x H (mm)
V.A
L x W(mm)
Dots Size
L x W(mm)
VOltage     Interface
480x272RGBCJS04301120.4x68.6x8.098.5x57.30.066x0.1985V/9V-26VRS232/RS485/TTL
800x480RGBCJS05001143.5x80.9x17.5109x65.80.045x0.1355V/9V-26VRS232/RS485/TTL
640x480RGBCJS05602143.5x105x17115.9x87.670.0588x0.17645V/9V-26VRS232/RS485/TTL
800x480RGBCJS07001190x112x18154.9x93.90.0635x0.19055V/9V-26VRS232/RS485/TTL
800x480RGBCJS07002190x112x18155.9x88.30.0635x0.19055V/9V-26VRS232/RS485/TTL
1024x600RGBCJS07006190x106.6x37.5156.2x92.60.0635x0.19055V/9V-26RS232/RS485/TTL
800x480RGBCJS07008203x112x21155.9x88.30.0635x0.19055V/9V-26VRS232/RS485/TTL
800x600RGBCJS08001199.4x148.9x15163.5x123.50.0675x0.20255V/9V-26VRS232/RS485/TTL
1024x768RGBCJS08003199.4x148.9x37.5163.5x123.50.0675x0.20255V/9V-26RS232/RS485/TTL
1280x800RGBCJS10101248x150.7x37.5219.46x138.10.0635x0.19055V/9V-26RS232/RS485/TTL
800x600RGBCJS10401247.5x176.8x16211.2x158.40.264x0.2645V/9V-26VRS232/RS485/TTL
800x600RGBCJS10402247.5x176.8x16211.2x158.40.264x0.2645V/9V-26VRS232/RS485/TTL
