4 wire spi serial port 1602 character lcd display module

FOB Reference Price:Get Latest Price
  • >=3000 Pieces
    US $3.20
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Caijing
Model Number:
SCM162-1SBYA
Type:
Character
product name:
4 wire spi serial port 1602 character lcd display module
Color:
Yellow green
Voltage:
3V
Backlight:
LED backlight
Interface:
Serial
Viewing area:
99X24mm
LCD type:
STN yellow green
LED backlight color:
yellow green
Display mode:
positive
LED backlight current:
160mA
Supply Ability
Supply Ability:
30000 Piece/Pieces per Day For 3.3v programmable 4 wire spi 16 charactersx2 lines lcd
Packaging & Delivery
Packaging Details
1pc/bubble bag,2pcs in a small box.
Port
Shenzhen Port
Lead Time :
10-15 days

4 wire spi serial port 1602 character lcd display module

Product Description

Number of characters: 16 characters x 2 lines

Display types: COB STN/FSTN, blue/gray/yellow green and negative/positive

Duty: 1/16

Bias: 1/5

Input voltages: 5.0/3.3V DC

Controller: AIP31068

Connector: zebra

LED backlight colors: white, blue and yellow green

Operating temperature: 0 to 50/-20 to 70°C

Storage temperatures: -10 to 60/-30 to 80°C

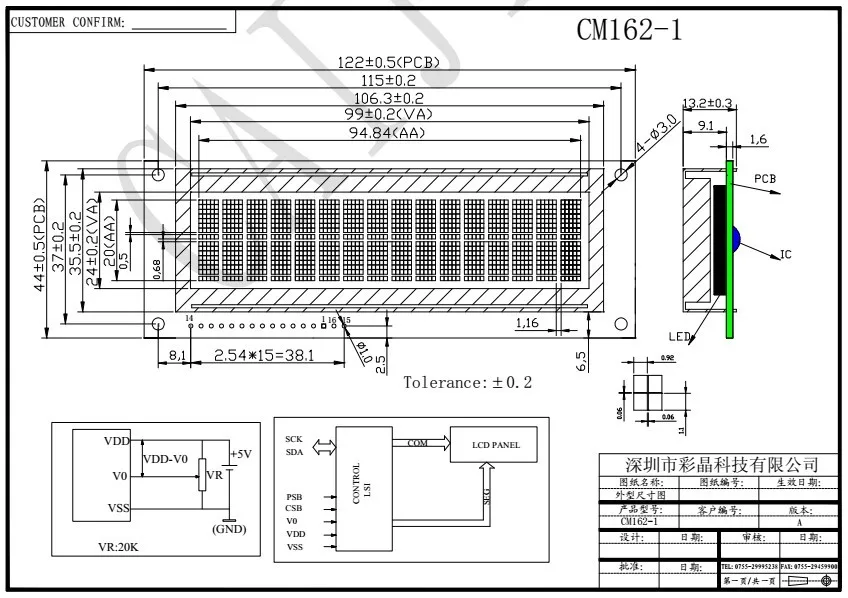

Module dimensions: 122.0 x 44.0 x 13.2mm

VA: 99.0 x 24.0mm

AA: 94.84 x 20.0mm

Character dimensions: 4.84 x 9.66mm

Dot dimensions: 0.92 x 1.1mm

Dot pitch: 0.06 x 0.06mm



3.3v programmable 4 wire spi 16 charactersx2 lines lcd display module

16x2 character lcd module.JPG

3.3v programmable 4 wire spi 16 charactersx2 lines lcd display module

16x2 lcd displays.JPG

Product Certificates

4 wire spi serial port 1602 character lcd display module

Factory supply 5V COB style 16x2 character lcd display module with LED backlight



Our Services

Our advantage and service

15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free sample for some styles



Contact Us

Shenzhen Brilliant Crystal Technologic Co.,ltd

Bella Zou

Skype:cjsz2002

QQ:2829642402

cjsz2002#hotmail.com

Celand whatsapp:+86-15889302786

Tel:+86-0755-29485608

Website:www.cjlcd.com  & www.cj86.com

              https://szcmlcd.1688.com/

Related Product

Related Product  for  4 wire spi serial port 1602 character lcd display module

 About character lcd module ,we also have 16x1 character lcd module display ,16x2 character LCM,16x4 monochrome lcd display,20x2 lcd ,20x4 lcd display ,40x2 small size lcd module,40x4 lcd display module.

Display ContentModel No.Outline Size(mm)V.A(mm)Dots SizeControllerVoltageInterface
8x2CM802-140×35×728×140.5×0.5SPLC7805V/3Vserial/parallel
8x2CM802-258×32×13.538×160.56×0.66SPLC7805V/3Vserial/parallel
8x2CM802-658×32×13.538×160.56×0.66SPLC7805V/3Vserial/parallel
12x1CM121-1103×35×1176×251×1.4SPLC7805V/3Vserial/parallel
16x1CM161-180×36×1264×13.80.55×0.7SPLC7805V/3Vserial/parallel
16x1CM161-2122×33×1499×130.92×1.1SPLC7805V/3Vserial/parallel
16x2CM162-1122×44×13.499×240.92×1.1SPLC7805V/3Vserial/parallel
16x2CM162-384×44×13.762×180.55×0.65SPLC7805V/3Vserial/parallel
16x2CM162-480×36×1264×13.80.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1084×44×1264×13.80.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1180×36×12.564.9×15.90.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1285×36×11.364.9×15.90.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1380×36×12.564.6×13.80.55×0.55SPLC7805V/3Vserial/parallel
16x2CM162-1585×29×11.364.9×15.90.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1785×36×1462×160.55×0.65SPLC7805V/3Vserial/parallel
16x2CM162-3680x36x11.364.9x15.90.54x0.62SPLC7805V/3Vserial/parallel
16x4CM164-187×60×12.561.5×250.55×0.55SPLC7805V/3Vserial/parallel
16x4CM164-287×55×12.561.5×250.55×0.55SPLC7805V/3Vserial/parallel
20x2CM202-1116×37×12.583×18.50.61×0.66SPLC7805V/3Vserial/parallel
20x2CM202-2180×40×14.3148×231.1×1.12SPLC7805V/3Vserial/parallel
20x2CM202-3116×32.5×7.987.8×17.50.553×0.569SPLC7805Vserial/parallel
20x2CM9079123×25×12.785×12.90.55×0.65SPLC7805Vserial/parallel
20x4CM204-198×60×1476×260.55×0.55SPLC7805V/3Vserial/parallel
20x4CM204-2146×62.5×13123×42.50.92×1.1SPLC7805V/3Vserial/parallel
40x2CM402-1182×33×11.5154×15.80.6×0.65SPLC7805Vserial/parallel
40x4CM404-1190×54×13.6147×29.50.5×0.55SPLC780x25V/3Vserial/parallel
