Small size 4 wire spi iic serial port 8x2 character lcd displays

FOB Reference Price:Get Latest Price
  • >=1000 Pieces
    US $1.50
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Caijing
Model Number:
SCM802-6SLDAA-3-06
Type:
Character
product name:
Small size 4 wire spi iic serial port 8x2 character lcd displays
Color:
yellow green
Voltage:
3V
Backlight:
LED backlight
Interface:
Serial or parallel
Viewing area:
38x16mm
Weight:
28g
controller:
AIP31068
Viewing angle:
6 o'clock
LED backlit current:
15mA
Supply Ability
Supply Ability:
30000 Piece/Pieces per Day For Small size 4 wire spi 8x2 Alphanumeric character lcd display
Packaging & Delivery
Packaging Details
1pc/bubble bag,2pcs in a small box.
Port
Shenzhen Port
Lead Time :
10-15 days

              Small size 4 wire spi 8x2 Alphanumeric character lcd displays

Product Description

Character: LCD 8x2 (CM802-6SLDAA-3-06)

Number of character: 8 x 2
Size: 58*32*13.5mm
VA: 38*16mm
Drive methods: 1/16 duty, 1/5 bias
Viewing angle: 6:00
Display: STN yellow-green or blue model
Voltages: 5V or 3.3V
Controller: AIP31068
Top: -20-70°C
TST: -30-80°C

 Small size 4 wire spi 8x2 Alphanumeric character lcd displays

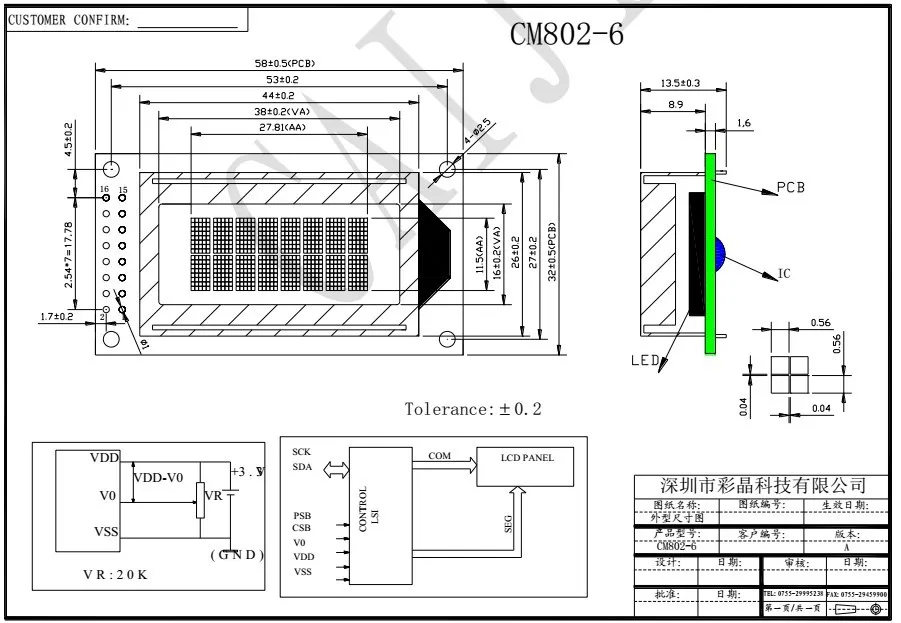

CM802-6 lcd module.JPG

 Small size 4 wire spi 8x2 Alphanumeric character lcd displays

8x2 lcd module display.JPG

Product Certificates

Small size 4 wire spi 8x2 Alphanumeric character lcd displays

8 characters 2 lines lcd module certificates.png



Our Services

Our advantage and service

15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free sample for some styles

Contact Us

Shenzhen Brilliant Crystal Technologic Co.,ltd

Bella Zou

Skype:cjsz2002

QQ:2829642402

cjsz2002#hotmail.com

Celand whatsapp:+86-15889302786

Tel:+86-0755-29485608

Website:www.cjlcd.com  & www.cj86.com

              https://szcmlcd.1688.com/

8x2 character lcd module 1.png

Related Product

Related Product  for  Small size 4 wire spi 8x2 Alphanumeric character lcd displays

 About character lcd module ,we also have 16x1 character lcd module display ,16x2 character LCM,16x4 monochrome lcd display,20x2 lcd ,20x4 lcd display ,40x2 small size lcd module,40x4 lcd display module.

Display ContentModel No.Outline Size(mm)V.A(mm)Dots SizeControllerVoltageInterface
8x2CM802-140×35×728×140.5×0.5SPLC7805V/3Vserial/parallel
8x2CM802-258×32×13.538×160.56×0.66SPLC7805V/3Vserial/parallel
8x2CM802-658×32×13.538×160.56×0.66SPLC7805V/3Vserial/parallel
12x1CM121-1103×35×1176×251×1.4SPLC7805V/3Vserial/parallel
16x1CM161-180×36×1264×13.80.55×0.7SPLC7805V/3Vserial/parallel
16x1CM161-2122×33×1499×130.92×1.1SPLC7805V/3Vserial/parallel
16x2CM162-1122×44×13.499×240.92×1.1SPLC7805V/3Vserial/parallel
16x2CM162-384×44×13.762×180.55×0.65SPLC7805V/3Vserial/parallel
16x2CM162-480×36×1264×13.80.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1084×44×1264×13.80.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1180×36×12.564.9×15.90.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1285×36×11.364.9×15.90.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1380×36×12.564.6×13.80.55×0.55SPLC7805V/3Vserial/parallel
16x2CM162-1585×29×11.364.9×15.90.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1785×36×1462×160.55×0.65SPLC7805V/3Vserial/parallel
16x2CM162-3680x36x11.364.9x15.90.54x0.62SPLC7805V/3Vserial/parallel
16x4CM164-187×60×12.561.5×250.55×0.55SPLC7805V/3Vserial/parallel
16x4CM164-287×55×12.561.5×250.55×0.55SPLC7805V/3Vserial/parallel
20x2CM202-1116×37×12.583×18.50.61×0.66SPLC7805V/3Vserial/parallel
20x2CM202-2180×40×14.3148×231.1×1.12SPLC7805V/3Vserial/parallel
20x2CM202-3116×32.5×7.987.8×17.50.553×0.569SPLC7805Vserial/parallel
20x2CM9079123×25×12.785×12.90.55×0.65SPLC7805Vserial/parallel
20x4CM204-198×60×1476×260.55×0.55SPLC7805V/3Vserial/parallel
20x4CM204-2146×62.5×13123×42.50.92×1.1SPLC7805V/3Vserial/parallel
40x2CM402-1182×33×11.5154×15.80.6×0.65SPLC7805Vserial/parallel
40x4CM404-1190×54×13.6147×29.50.5×0.55SPLC780x25V/3Vserial/parallel
